Product Overview

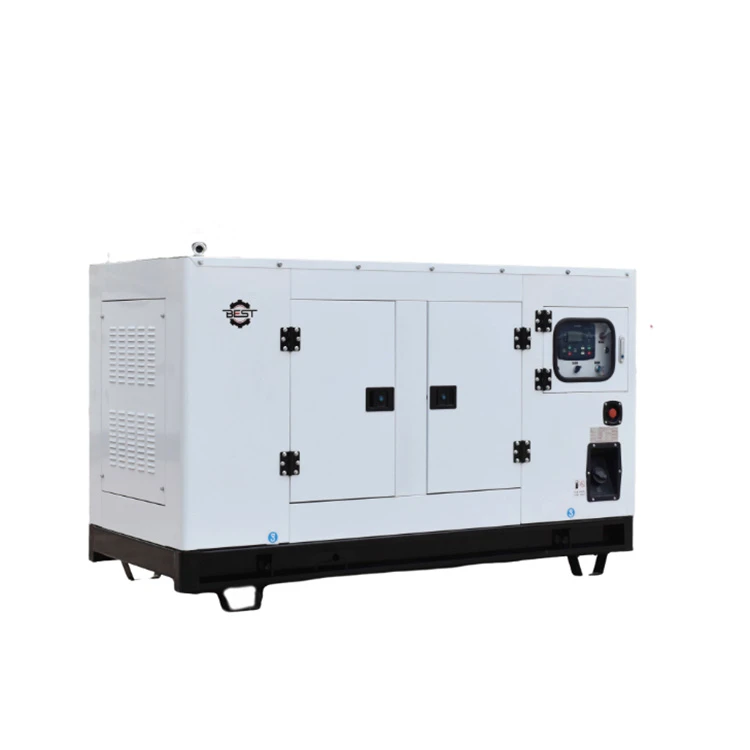

Silent Diesel Generator With ATS Copper Inverter is a soundproof diesel generator set integrating a diesel engine, all-copper brushless alternator, ATS, and inverter control system. It uses a closed water-cooling system and standard diesel fuel, suitable for backup and prime power supply in commercial, industrial, and infrastructure applications.

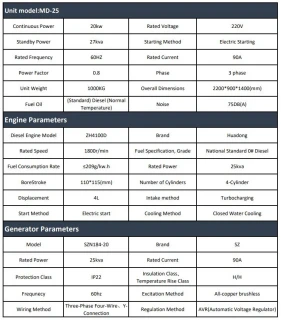

Key Specifications
Product Highlights
All-copper brushless alternator → Improves conductivity, thermal performance, and long-term durability.
Integrated ATS → Enables automatic transfer between utility power and generator power during outages.
AVR voltage regulation → Helps maintain stable output voltage for sensitive electrical equipment.
Closed water-cooling system → Supports continuous operation under varying ambient conditions.
Turbocharged 4-cylinder diesel engine → Provides efficient power output with reduced fuel consumption.
Typical Applications
Commercial Buildings: Backup power for offices, retail stores, and business centers.
Construction Sites: Temporary power for tools, lighting, and site facilities.
Telecommunication Stations: Emergency power for communication equipment and network infrastructure.
Industrial Workshops: Standby power for production lines, compressors, and control systems.
Agricultural Facilities: Power supply for irrigation systems, pumps, and farm operations.
Hotels & Residential Projects: Automatic backup power during utility interruptions.
OEM & Customization
|
Customizable Item |
Available Options |
|
Engine Options |
Different diesel engine brands, emission levels, and power ratings |
|
Alternator Options |
All-copper brushless alternators, different insulation classes, IP ratings |
|
Electrical Configuration |
Single-phase or three-phase, 50Hz or 60Hz, various voltage outputs |
|
Control System |
Digital controller, remote monitoring, inverter configuration, ATS integration |
|
Fuel Tank Capacity |
Standard or extended runtime fuel tanks |
|
Canopy & Appearance |
Custom color, logo printing, soundproof canopy design |
|
Output Sockets & Breakers |
Industrial sockets, MCCB options, customized output panels |
Quality Control
Incoming Material Inspection (IQC): Engine components, copper windings, electrical parts.
Dimensional Verification: Chassis alignment, canopy tolerances, mounting accuracy.
Electrical Testing: Insulation resistance, continuity, phase balance, AVR function.
ATS Functional Test: Automatic transfer and recovery operation.
Load-Bank Test: 25%, 50%, 75%, and 100% load operation.
Voltage & Frequency Stability Test: Output performance verification under varying loads.
Noise Measurement: Sound level verification at specified distance.
Final Inspection (FQC): Appearance, labeling, accessories, documentation, and packaging.
Certifications
|
ISO 9001 |
Quality management system |
|
CE |
EU safety and compliance requirements |
|
IEC Standards |
Electrical and generator performance standards |
|
IP22 Protection Class |
Protection against solid objects and limited water ingress |
|
Class H Insulation |
High-temperature insulation system |
Packaging & Shipping
|
Export Packaging |
Fumigation-free plywood case or wooden crate. |
|
Inner Protection |
Moisture-proof film and shock-absorbing materials. |
|
Container Loading |
20GP, 40GP, or 40HQ according to quantity. |
|
Shipping Methods |
Sea freight, rail freight, or multimodal transport. |
|
Marking |
Model number, gross weight, lifting points, and shipping marks. |
FAQ
Q: How do I select the correct generator capacity?
A: Provide the total running load, starting load, voltage, frequency, and whether the load is single-phase or three-phase.
Q: Are spare parts available for future maintenance?
A: Yes. Common spare parts such as filters, belts, sensors, AVR modules, and control components are available for long-term supply.
Q: What maintenance interval is recommended?
A: Engine oil and filters are typically checked every 250 operating hours.
Q: What is the standard lead time?
A: Standard configurations are usually shipped within 20–30 days after order confirmation and deposit receipt.
Q: What warranty is provided?
A: The standard warranty is 12 months from commissioning or 1,000 operating hours, whichever comes first.
Q: Which Incoterms can be offered?
A: EXW, FOB, CFR, and CIF are commonly available depending on the destination country and shipment arrangement.
Q: Is installation guidance available?
A: Yes. Wiring diagrams, ATS connection guidance, and remote technical support can be provided for installation.
Q: What documents are included for export?
A: Commercial Invoice, Packing List, Bill of Lading, Certificate of Origin, and other destination-specific export documents can be supplied upon request.
