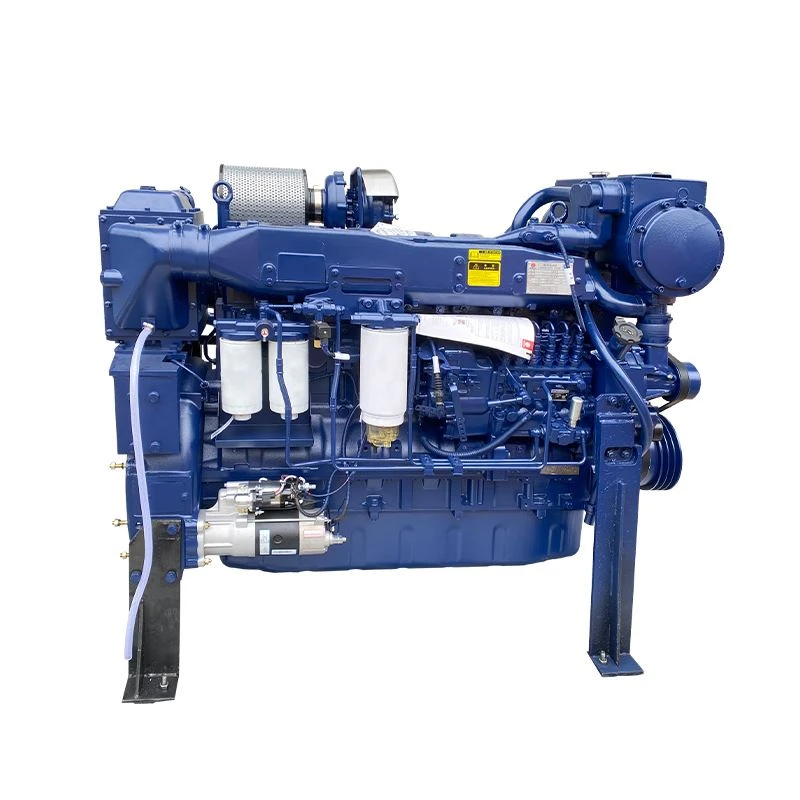

The Diesel Powered Engine is a 6-cylinder, four-stroke inline diesel engine with turbocharging, intercooling and closed water cooling. It operates at 1500 rpm and delivers 350 kW prime power or 385 kW standby power. The engine uses a DC 24V electric starting system for industrial power and equipment applications.
Technical Specifications
|
ALTERNATOR DATA |
|
|
Diesel Model |
WP13D385E200 |
|
Type |
In-line,4-Strokes,Water cooled,Turbocharged and Intercooled |
|
Rated power |
80KW/100KVA |
|
No. of cylinders / valves |
6/24 |
|
Speed |
1500RPM |
|
Bore/Stroke |
127mm/165mm |
|
Compression Ratio |
17 ：1 |
|
Displacement |
12.54L |
|
Continuous Power |
298 kW |
|
Rated Power |
350kW |
|
Overload Power |
385kw |
|
Rated Speed |
1500r/min |
|
Specific Fuel Consumption |
210 g/kWh |
|
Fuel Type |
Diesel fuel |
|
Idle Speed |
600±50r/min |
|
Bore/Stroke |
127mm/165mm |
|
Fire Sequence |
1-5-3-6-2-4 |
|
Crankshaft RotatingDirection |
Counterclockwise facing flywheel |
|
Starting method |
DC24V ElectricalStart |
|
Governing control |
Electrical/Mechanical speedgovernor |
|
Cooling mode |
Closed water cooled |
Typical Applications
Diesel Generator Sets: Used as the prime mover for 50 Hz generator sets operating at 1500 rpm, with rated power up to 350 kW.
Water & Irrigation Pumps: Suitable for large-capacity water pumps used in irrigation, drainage and water transfer systems.
Air Compressors: Used to drive industrial air compressors requiring a 1500 rpm diesel power source.
Mining & Construction Equipment: Applicable to stationary or mobile equipment such as dewatering units, material-handling machinery and other diesel-driven equipment within the engine's power range.
Installation & Powertrain Compatibility
Flywheel & Rotation
The crankshaft rotates counterclockwise when viewed from the flywheel side. Flywheel and coupling specifications should be confirmed before installation.
Mounting Dimensions
Engine mounting points and overall installation dimensions should be matched with the equipment frame. Relevant drawings can be provided for confirmation.
Cooling & Electrical Connections
The equipment must accommodate the closed water-cooling circuit and DC 24V starting system, including the required coolant and electrical connections.
Powertrain Matching
Before ordering, confirm engine speed, required power, flywheel/coupling arrangement, mounting dimensions and driven-equipment requirements.
OEM Customization & Configuration
Control & Starting
Electronic or mechanical governing and DC 24V electric starting can be matched to the equipment control arrangement where supported by the selected configuration.
Cooling & Air Intake
Cooling package and air intake components are selected according to the engine configuration and installation requirements, subject to technical confirmation.
Generator Set Integration
The engine can be integrated with a suitable alternator, control system and auxiliary components based on the required generator-set configuration and power rating.
Quality Control & Performance Testing
Raw Material & Component Inspection
Raw material inspection, dimensional verification of key components, and non-destructive testing of core castings are performed before assembly.
Core Subsystem Validation
Cylinder block and head pressure tests, crankshaft dynamic balancing, fuel injection calibration, and cooling/lubrication system leak checks are performed before engine testing.
Full-Load Dynamometer Testing
Factory bench testing covers engine no-load operation, electric starting and full-load dynamometer testing to verify output and operating temperature under load.
Noise, Vibration & Final Inspection
Noise and vibration measurements are followed by final appearance inspection, packaging checks, and test report preparation.
Maintenance & Serviceability
Routine Maintenance
Routine service includes inspection and replacement of lubricating oil, filters and other consumable parts according to the applicable maintenance schedule.
Cooling System Maintenance
Coolant level, system condition and possible leakage should be checked during routine maintenance.
Fuel System Maintenance
Fuel filters and the injection system should be maintained according to the engine maintenance requirements.
Service Documentation
Operation and maintenance manuals can be supplied for installation, operation and routine service.
Spare Parts
Replacement parts and service components can be supplied according to maintenance and after-sales requirements.
Certification & Technical Documentation
ISO 9001, ISO 14001 and ISO 45001 management system certifications are available.
CE and CCC certification are available where applicable. Emission configurations can be specified according to destination-market requirements.
Installation guides, operation and maintenance manuals, wiring diagrams and spare parts lists are available.
Commercial invoices, packing lists, bills of lading, certificates of origin and applicable inspection or CE documents can be provided.
FAQ
Q: What information should I provide when selecting this diesel engine?
A: Provide the required power, operating speed, driven equipment, duty cycle, installation space, cooling arrangement and power-output connection for compatibility checking.
Q: Can this engine be used for generator sets?
A: Yes. The engine can be matched with an alternator according to the required output, speed, coupling and control configuration.
Q: Can the engine be supplied for OEM equipment?
A: Yes. Governing, starting, cooling, air filtration, control and alternator-matching configurations can be discussed according to the equipment requirements.
Q: Can technical documents be provided?
A: Product specifications, installation information, operation and maintenance manuals, spare parts information and applicable inspection documents can be supplied according to the order configuration.
Q: Is engine testing available before shipment?
A: Completed engines undergo no-load and full-load dynamometer testing before shipment according to the manufacturer's stated testing process.
