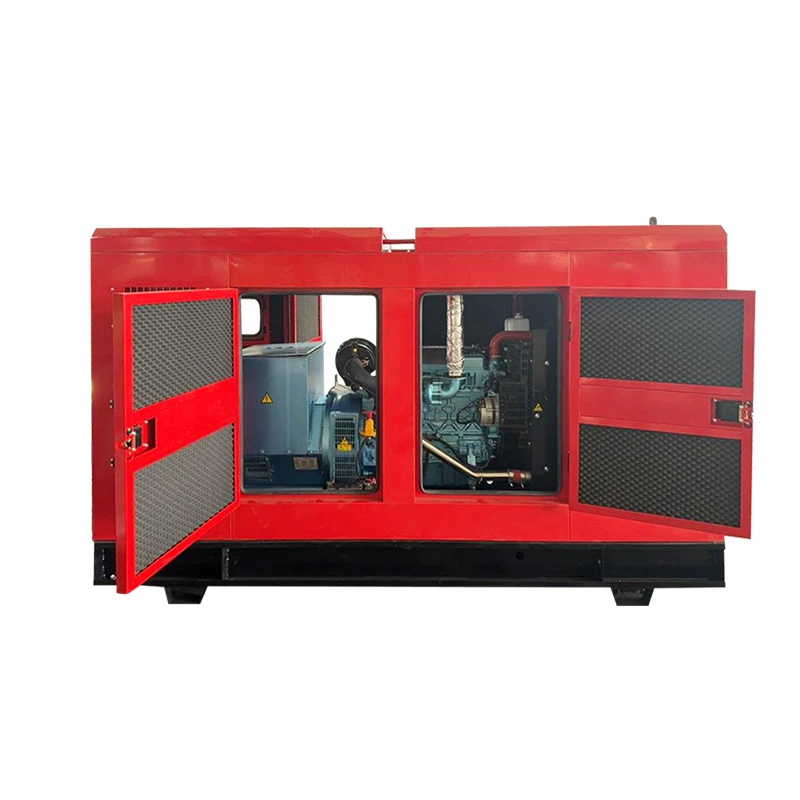

Box Diesel Generator Set is an enclosed diesel power solution from 20–2500 kVA, combining low-noise operation, weather protection, flexible engine options, and configurable controls for standby and continuous outdoor power applications.
Send Inquiry
Description
Technical Parameters

Box Diesel Generator Set is an enclosed diesel power solution from 20–2500 kVA, combining low-noise operation, weather protection, flexible engine options, and configurable controls for standby and continuous outdoor power applications.



Key Specifications



Item

Specification

Generator Type

Box Diesel Generator Set

Power Range

20–2500 kVA continuous prime output

Frequency

50 Hz / 60 Hz

Speed

1500 rpm / 1800 rpm

Standard Voltage

400 V / 480 V

Engine Options

Cummins / Perkins / Baudouin

Alternator Options

Stamford / Leroy-Somer

Alternator Type

Brushless

Insulation Class

H

Excitation

PMG

Voltage Regulation

±0.5% AVR

Fuel Consumption

198–205 g/kWh at 75% load

Cooling

Heavy-duty radiator

Ambient Temperature

Up to 50°C without derating

Noise Level

≤68 dB(A) at 7 m at 100% load

Controller

DSE / ComAp

Remote Monitoring

Optional 4G

Parallel Operation

Up to 32 units

Load Acceptance

Up to 70% first-step block load

Load Rejection

100% load rejection capability



Generator Configuration & Performance



Diesel Engine Options
Cummins, Perkins, and Baudouin industrial diesel engines are available across the 20–2500 kVA range. Engine selection can be matched to the required output and project operating conditions.



Brushless Alternator System
Stamford and Leroy-Somer brushless alternators are available with H-class insulation and PMG excitation for applications requiring controlled generator output.



Electrical Performance
The AVR system provides ±0.5% voltage regulation to maintain stable generator voltage as electrical demand changes.



Load Response
The generator set supports up to 70% first-step block load acceptance and 100% load rejection capability, with performance referenced to ISO 8528-5 G2/G3 requirements.



Box Enclosure Design

Acoustic Insulation

The enclosure uses multi-layer high-density rock wool with a density of 100 kg/m³ to reduce sound transmission from the engine and exhaust system.

Noise Level

Noise level is ≤68 dB(A) at 7 m at 100% load, providing a measurable reference for installations with site noise restrictions.

Enclosure Materials

The enclosure is available in 2.5 mm cold-rolled steel or marine-grade aluminum, with AkzoNobel powder coating applied to the enclosure surface.



Weather & Corrosion Protection

Air-intake louvers, EPDM door gaskets, and Grade 316 stainless-steel hardware protect against outdoor exposure. The enclosure has passed a 1,000-hour salt spray test, with IP23 and IP54 configurations available.



Control & Operation



Controller & Monitoring
DSE and ComAp controllers provide generator monitoring, operating control, alarm management, and protection functions.



Automatic Standby
AMF/ATS configurations support automatic utility monitoring, generator starting, and load transfer when mains power fails.



Remote Monitoring
Optional 4G connectivity provides remote access to generator operating information for off-site monitoring.



Parallel Operation
Up to 32 generator sets can be configured for parallel operation for load sharing, capacity expansion, or redundant power systems.



Outdoor Use & Serviceability

01/

Hot-Climate Operation
The heavy-duty radiator supports operation at ambient temperatures up to 50°C without derating, making the generator suitable for hot-climate installations.

02/

Outdoor Protection
The enclosed housing, protected air-intake structure, EPDM door gaskets, and stainless-steel hardware reduce direct exposure of internal components to rain and outdoor conditions.

03/

Lifting & Handling
The base structure incorporates four-point overhead lifting lugs and forklift pockets for transportation and on-site positioning. The lifting structure is rated at 1.5 times the total wet weight.

04/

Service Access
Access doors provide access to the engine, alternator, control equipment, and cooling system for routine inspection and maintenance.



Configuration Options



Electrical Configuration
Voltage, frequency, and generator capacity can be specified according to local grid requirements and project load conditions.



Enclosure Configuration
Cold-rolled steel or marine-grade aluminum enclosure options are available, with enclosure protection and coating selected according to the installation environment.



Control & Automatic Transfer
DSE or ComAp controllers can be configured with AMF/ATS functions and optional 4G remote monitoring according to the required operating mode.



System Integration
Parallel operation and other project-specific electrical configurations can be provided for installations requiring additional capacity or standby redundancy.



Applications

Data Centers

For backup power at data centers, server facilities, and other sites requiring continuous power availability.

Construction & Mining

For temporary or off-grid power at construction sites, mining operations, equipment bases, and remote infrastructure.

Healthcare

For emergency power at hospitals, medical facilities, and temperature-controlled medical storage sites.

Industrial & Utilities

For manufacturing facilities, pumping stations, irrigation systems, and other industrial and utility power applications.



Testing & Quality Control



Electrical Inspection
Generator wiring, electrical connections, voltage, frequency, and control functions are checked before shipment.



Load Bank Testing
Factory load-bank testing is performed at 25%, 50%, 75%, 100%, and 110% load to verify generator output under different operating conditions.



Protection Testing
Alarm, shutdown, emergency-stop, and configured protection functions are checked during the generator testing process.



Quality & Compliance
Manufacturing operates under ISO 9001:2015 and ISO 14001:2015 management systems. Applicable control-panel and electrical configurations can meet UL 508A, CSA C22.2, NFPA 110 Level 1, and CE Machinery Directive 2006/42/EC requirements.

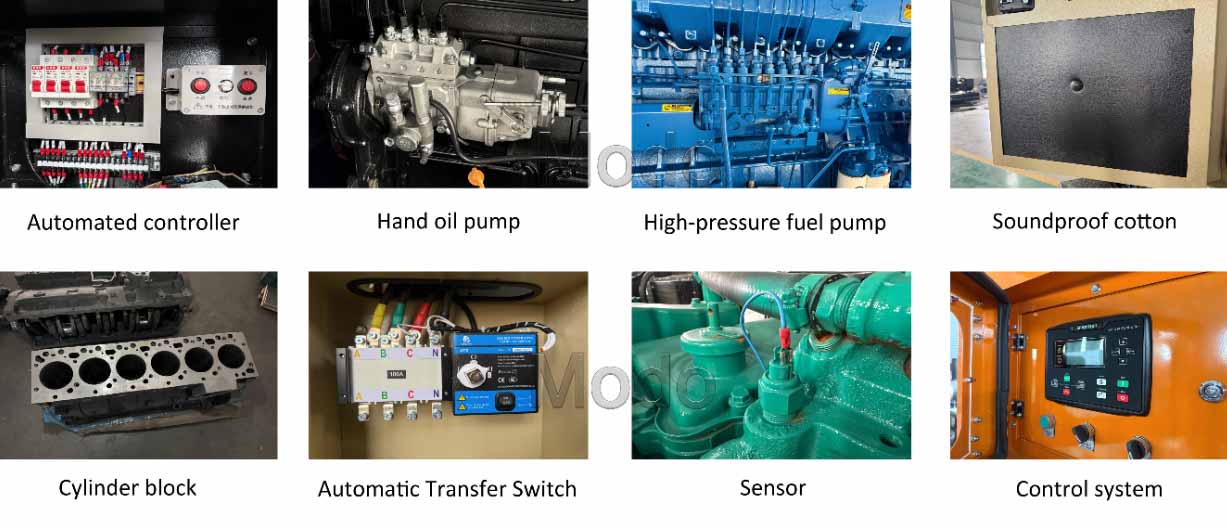

20251211160425d4154



FAQ



Q: Can I order one unit before placing a bulk order?

A: Yes. MOQ is 1 unit, allowing buyers to verify the selected configuration before larger-volume procurement.

Q: What is the lead time for standard and custom units?

A: Standard 40–500 kVA units require approximately 30 days. Custom multi-megawatt systems typically require 45–60 days.

Q: What warranty is included?

A: The standard warranty is 12 months or 1,000 operating hours. Extended coverage up to 36 months or 3,000 hours is available.

Q: How are generator sets packaged for export?

A: Export units use protective shrink wrap, internal desiccant packs, and heavy timber blocking. FOB, CIF, DDP, and DAP shipping terms are available.

Q: What spare parts and after-sales support are available?

A: Service parts and major components are available for the selected generator model, with remote technical support and regional service assistance for overseas projects.
