Product Overview
100kW Open Frame Diesel Generator is a three-phase diesel-powered generator set with an open-frame structure, closed water cooling system, and electric starting. It provides reliable prime or standby power for industrial facilities, construction sites, commercial buildings, mining operations, and infrastructure projects.

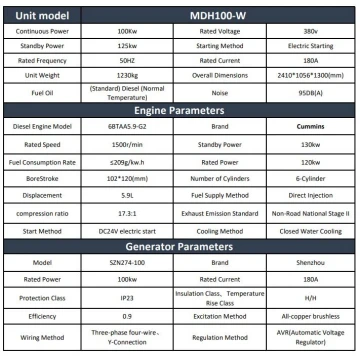

Key Specifications
Product Highlights
Open-frame design → Provides easy access for routine inspection, maintenance, and servicing.
Closed water cooling system → Maintains stable operating temperature during continuous operation.
Cummins diesel engine → Delivers dependable performance with efficient fuel consumption.
Brushless copper alternator with AVR → Ensures stable voltage output for sensitive electrical equipment.
24V electric starting system → Enables quick and reliable engine startup in various operating conditions.
Three-phase four-wire output → Supports a wide range of industrial and commercial electrical applications.
Typical Applications
Construction Sites – Supplies temporary power for cranes, welding equipment, pumps, and power tools.
Manufacturing Plants – Provides backup or continuous electricity for production equipment and workshops.
Mining Operations – Powers drilling machines, conveyors, lighting systems, and field facilities.
Commercial Buildings – Maintains power for offices, shopping centers, and warehouses during outages.
Infrastructure Projects – Supports road construction, bridge works, and municipal engineering projects.
Agricultural Facilities – Provides electricity for irrigation systems, grain processing, and farm equipment.
OEM & Customization
|
Customization Item |
Available Options |
|
Engine Options |
Cummins, Perkins, Deutz, Weichai, Yuchai, Ricardo, or customer-specified brand |
|
Alternator Options |
Stamford, Leroy Somer, Marathon, Mecc Alte, or Chinese premium brands |
|
Power Rating |
Prime power or standby power configuration |
|
Output Voltage |
220V, 230V, 380V, 400V, 415V, 440V or customized |
|
Frequency |
50Hz or 60Hz |
|
Control System |
Manual, Auto Start, ATS, Remote Monitoring, Smart Controller |
|
Circuit Breaker |
Standard or customer-specified MCCB brands and ratings |
|
Fuel Tank |
Standard base tank or extended runtime fuel tank |
|
Canopy Option |
Open frame, silent canopy, trailer-mounted, containerized |
|
Color & Appearance |
Custom paint color, logo, decals, and nameplate |
|
Sockets & Output |
Industrial sockets and terminal configurations upon request |
|
Accessories |
Battery charger, engine heater, fuel-water separator, remote monitoring module |
Quality Control
• Incoming raw material inspection (IQC)
• Engine component verification
• Alternator electrical performance inspection
• Frame dimensional inspection
• Fuel system leakage test
• Cooling system pressure test
• Electrical wiring continuity test
• Insulation resistance test
• Grounding continuity verification
• AVR voltage regulation test
• Starting system functional test
• Frequency and voltage stability test
• 25%, 50%, 75%, 100% load bank testing
• Noise level measurement
• Final Quality Control (FQC)
• Pre-shipment inspection (PSI)
Certifications
|
ISO 9001 |
Quality Management System |
|
CE |
Compliance with applicable EU directives |
|
ISO 14001 |
Environmental Management System |
|
ISO 45001 |
Occupational Health & Safety Management System |
|
EPA (Optional) |
U.S. emission compliance for applicable models |
|
EU Stage V (Optional) |
European emission compliance for selected engines |
|
SASO / SONCAP / EAC (Optional) |
Country-specific export certifications upon request |
Packaging & Shipping
• Steel base with forklift pockets
• Protective stretch film wrapping
• Export-grade plywood case (optional)
• Fumigation-free wooden packaging available
• Moisture-proof protection for sea freight
• Container loading (20GP / 40GP / 40HQ)
• LCL and FCL shipment available
• Ocean freight, railway freight, and road transportation supported
• Export shipping marks and customized labels available
FAQ
Q: How do I choose the correct generator capacity?
A: Select a generator based on the total running load, motor starting current, future expansion, and whether it will operate as prime or standby power. A load list is recommended before ordering.
Q: What spare parts are supplied?
A: Standard spare parts typically include oil filters, fuel filters, air filters, belts, and operation manuals. Additional maintenance kits are available upon request.
Q: What maintenance intervals are recommended?
A: Engine oil and filters are generally replaced every 250–500 operating hours, depending on operating conditions.
Q: What is the typical production lead time?
A: Standard models usually require 10–20 days after order confirmation. Customized configurations may require additional production time.
Q: What payment terms do you accept?
A: Common terms are 30% T/T deposit and 70% balance before shipment. Other payment methods can be discussed for long-term cooperation.
Q: Which Incoterms do you support?
A: Common trade terms include EXW, FOB, CFR, CIF, and DDP, depending on destination and customer requirements.
Q: What documents are provided for export?
A: Typical documents include the Commercial Invoice, Packing List, Bill of Lading, Certificate of Origin, User Manual, Test Report, and other documents required for customs clearance or destination markets.
