Product Overview

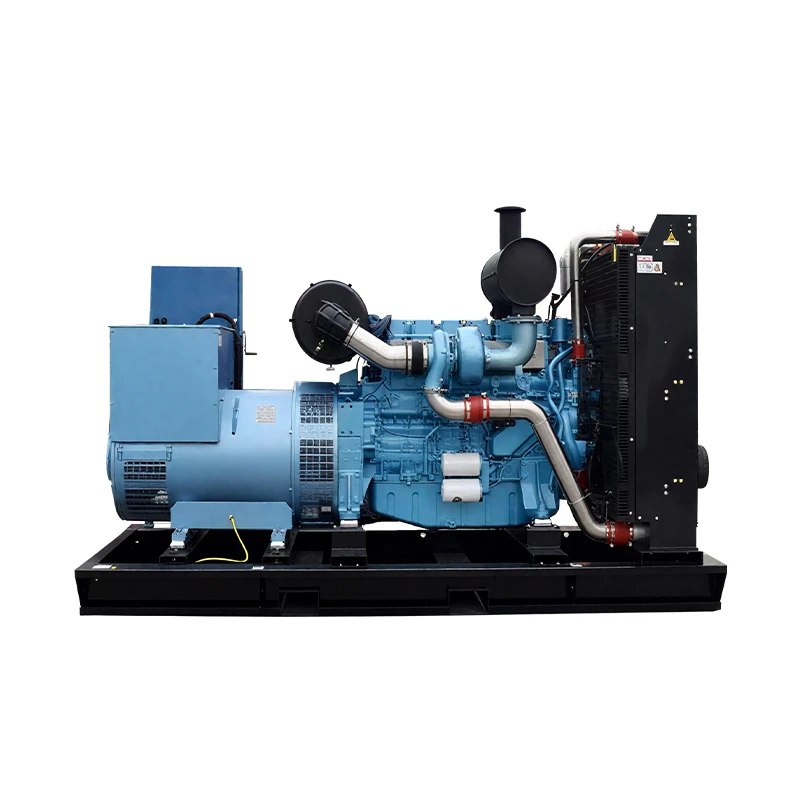

Backup Diesel Generator is a stationary diesel-powered generating system consisting of a diesel engine, alternator, control panel, cooling system, and steel base frame. It adopts closed water circulation cooling, uses light diesel fuel, and is designed for standby and emergency power in industrial, commercial, and infrastructure applications.
Product Highlights
Electronic speed governor → Maintains stable frequency output during varying load conditions.
AVR voltage regulation → Provides consistent voltage for sensitive electrical equipment.
Turbocharged diesel engine → Delivers higher power output with improved fuel efficiency.
Closed water cooling system → Supports continuous operation by maintaining stable engine temperature.
DC24V electric start → Enables fast and reliable generator startup during power outages.
Heavy-duty steel base frame → Improves structural stability and simplifies transportation and installation.
Typical Applications
Manufacturing Plants – Provides backup electricity for production lines, machinery, and essential equipment during grid failures.
Commercial Buildings – Maintains power for lighting, elevators, HVAC systems, and security equipment.
Hospitals & Healthcare Facilities – Supplies emergency power for medical equipment and critical care systems.
Construction Sites – Supports temporary power for tools, welding equipment, and site offices.
Telecommunication Stations – Ensures uninterrupted operation of communication networks and base stations.
Warehouses & Logistics Centers – Keeps automated systems, refrigeration, and loading equipment operational during outages.
OEM & Customization
|
Customization Item |
Available Options |
|
Engine Options |
Weichai, Cummins, Perkins, Volvo Penta, Deutz, MTU, Yuchai, SDEC, Ricardo and other specified brands |
|
Alternator Options |
Stamford, Leroy Somer, Marathon, Mecc Alte, ENGGA, Stamford-compatible models |
|
Power Rating |
Standby, Prime, Continuous ratings; customized output capacities |
|
Frequency |
50Hz or 60Hz |
|
Voltage Configuration |
220V, 230V, 380V, 400V, 415V, 440V or customized |
|
Phase Configuration |
Single-phase or three-phase |
|
Control System |
Manual, Automatic, AMF, ATS compatible, remote monitoring, parallel control |
|
Enclosure Type |
Open type, silent canopy, super silent canopy, containerized type, trailer-mounted |
|
Fuel Tank |
Standard base tank or extended running fuel tank |
|
Protection Level |
Standard or enhanced protection according to application requirements |
|
Surface Finish |
Custom colors, logos, labels, and branding |
|
Accessories |
Battery charger, engine heater, ATS cabinet, remote communication module, maintenance kit |
Manufacturing Advantages
• CNC machining ensures consistent dimensional accuracy for structural and mechanical components.
• Qualified component sourcing from verified suppliers improves product consistency.
• Precision assembly follows standardized work instructions for key mechanical and electrical systems.
• 100% wiring inspection verifies electrical connections before commissioning.
• Load bank testing is completed before shipment to confirm output performance.
• Serial number traceability enables production record tracking and after-sales support.
Quality Control
• Incoming raw material inspection (IQC)
• Diesel engine specification verification
• Alternator electrical performance inspection
• Frame welding quality inspection
• Surface treatment and coating thickness measurement
• Electrical wiring continuity test
• Insulation resistance test
• Grounding continuity verification
• AVR functional testing
• Control panel functional testing
• Automatic start/stop testing
• Voltage regulation accuracy test
• Frequency stability test
• Full-load and step-load bank testing
• Noise level measurement
• Final appearance inspection
• Factory Acceptance Test (FAT)
• Packaging inspection before shipment
Certifications
|
ISO 9001 |
Quality Management System |
|
CE |
Compliance with applicable European directives |
|
ISO 14001 |
Environmental Management System |
|
ISO 45001 |
Occupational Health and Safety Management System |
|
IEC 60034 |
Rotating electrical machine standards |
|
IEC 60204-1 |
Electrical safety requirements for machinery |
|
RoHS (optional) |
Restriction of hazardous substances for applicable components |
|
SONCAP, SASO, EAC, GCC, PVOC (available when required for destination markets) |
|
Packaging & Shipping
• Steel base fixed on fumigation-free plywood pallet
• Stretch film and moisture-proof protective wrapping
• Export plywood case available for LCL shipments
• Reinforced packing for long-distance sea transportation
• Spare parts packed separately and clearly labeled
• Container loading: 20GP, 40GP, 40HQ depending on generator size and quantity
• Shipping terms: EXW, FOB, CFR, CIF, DDP (subject to agreement)
• Sea freight, railway freight, road transportation, and multimodal shipping available
FAQ
Q: What power range is available for your backup diesel generators?
A: Our standard range covers 10 kW to 2500 kW, with both standby and prime power configurations available.
Q: What is your minimum order quantity?
A: The standard MOQ is 1 unit. Container orders are recommended for lower shipping costs per unit.
Q: What is the typical production lead time?
A: Generally 15–30 days, depending on generator specifications, quantity, and component availability.
Q: What warranty do you provide?
A: A standard warranty of 12 months after commissioning or 1,000 operating hours, whichever comes first, is commonly provided.
Q: Are spare parts available after purchase?
A: Yes. Routine maintenance parts and major replacement components remain available for long-term supply.
Q: What documents are provided for export?
A: Typical documents include Commercial Invoice, Packing List, Bill of Lading, Certificate of Origin, Warranty Certificate, Test Report, and User Manual. Other documents can be prepared if required.
Q: Do you provide installation and operation guidance?
A: Yes. We supply installation drawings, wiring diagrams, operation manuals, maintenance manuals, and remote technical support. On-site technical service can also be arranged when required.
