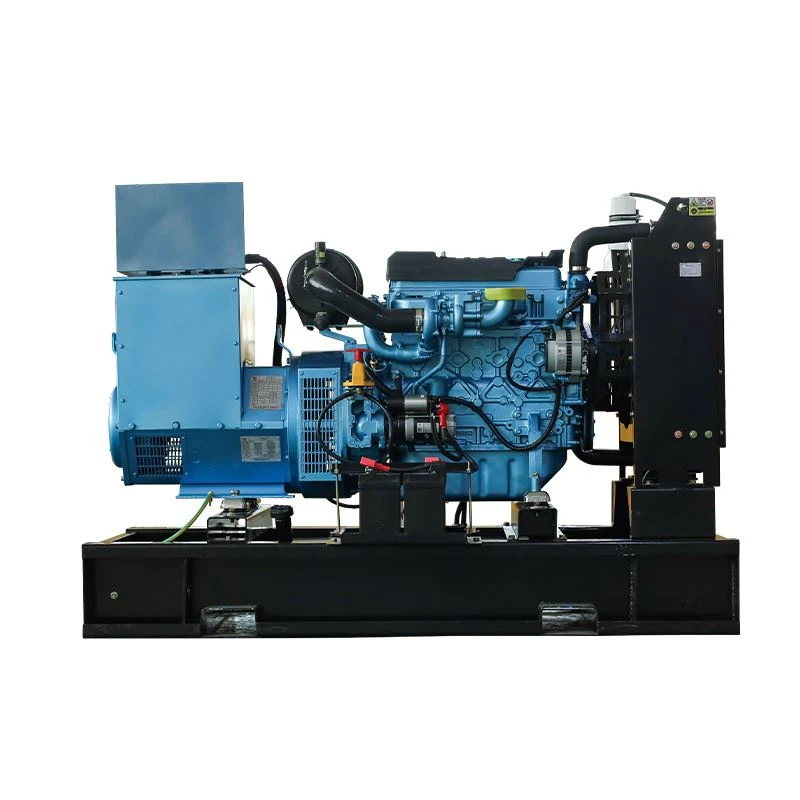

Product Overview
Industrial Diesel Generator is a diesel generator set designed to provide continuous or standby three-phase AC power for industrial electrical loads.
Technical Specifications
|
Category |
Parameter |
Specification |
|
Electrical Output |
Prime Power |
400 / 500 kW / kVA |
|
Standby Power |
440 / 550 kW / kVA |
|
|
Voltage |
400 / 230 V |
|
|
Frequency |
50 Hz |
|
|
Power Factor |
0.8 (lagging) |
|
|
Phase |
3-phase, 4-wire |
|
|
Voltage Regulation |
≤ ±1.0% |
|
|
Engine |
Type |
4-stroke diesel, water-cooled |
|
Configuration |
6-cylinder in-line |
|
|
Displacement |
15.0 L |
|
|
Aspiration |
Turbocharged aftercooled |
|
|
Speed |
1500 rpm |
|
|
Fuel Consumption |
51.3–98.5 L/h |
|
|
Governor |
Electronic / ECM |
|
|
Starting System |
24 V DC |
|
|
Alternator |
Excitation |
PMG |
|
Insulation Class |
Class H |
|
|
Protection |
IP23 |
|
|
AVR |
Automatic voltage regulator |
|
|
Physical |
Cooling System |
Water-cooled |
|
Fuel Tank |
800 L |
|
|
Noise Level |
75–95 dB(A) @7m |
|
|
Dimensions |
3300–4500 × 1400–1600 × 2000–2250 mm |
|
|
Weight |
3850–4900 kg |
Key Features
Deep Sea Parallel Control
Integrated DSE modules manage multi-set paralleling, load-sharing, and grid synchronization.
50°C Radiator System
High-ambient cooling packages maintain thermal stability during continuous operation in high-temperature environments.
Acoustic Canopy Enclosure
Weatherproof acoustic enclosure reduces engine noise to below 75 dB(A) at 7 meters.
Applications
|
Application Field |
Usage |
Benefit |
|
Data Centers |
Backup power during outages |
Supports system continuity during outages |
|
Manufacturing Plants |
Emergency power for production lines |
Supports operation during outages |
|
Hospitals |
Support critical medical systems |
Supports operation of critical medical systems |
|
Mining Sites |
Primary off-grid power |
Enables stable remote operation |
|
Construction Sites |
Temporary site electricity |
Supports tools and lighting use |
|
Commercial Complexes |
Backup during power failure |
Maintains essential services |
Custom Engineering & OEM Options
Tailored Color Match
Custom powder-coating matches specific corporate brand identities or site blending requirements.
Dual-Fuel Adaptability
Alternative fuel configurations support blending natural gas with diesel to lower emissions.
Alternative Alternator Brands
Flexible component selection allows substitution with specified alternator brands per client request.
Enlarged Base Tanks
Extended-capacity sub-base fuel tanks extend continuous autonomy without requiring external fuel infrastructure.
Quality Control & Certifications
100% Load Testing
Factory-certified load-bank testing at 25%, 50%, 75%, 100%, and 110% verifies transient and thermal stability.
Insulation Resistance Measurement
500V DC Megger tests confirm alternator windings exceed standard 100-megohm electrical insulation baselines.
Acoustic Level Verification
Calibrated decibel meters verify noise containment remains under 75dB(A) at 7 meters distance.
Fuel System Pressure Testing
Hydrostatic testing of fuel lines at 1.5 times operating pressure minimizes leak risks.
Transient Response Calibration
Sudden block-load applications verify transient voltage dips recover within standard 1.5-second windows.
Compliance & International Standards
|
Certificate / Standard |
Verification Profile |
|
ISO 8528 |
Generator performance and rating standard |
|
CE Marking |
EU safety and environmental compliance |
|
ISO 9001:2015 |
Quality management system control |
|
ISO 14001:2015 |
Environmental management compliance |
|
ISO 45001:2018 |
Occupational health & safety system |
|
2000/14/EC |
Noise emission compliance standard |
FAQ
Q: What is the lead time for custom containerized designs?
A: Custom engineering configurations require 4 to 6 weeks for fabrication and testing.
Q: Can the controller interface with our existing SCADA system?
A: Yes, the control system supports Modbus RTU/TCP for industrial network integration.
Q: How does the factory handle sea freight corrosion protection?
A: Gensets are vacuum-sealed with anti-corrosion VCI film and silica gel desiccants prior to containerization.
Q: Is FAT (Factory Acceptance Testing) available via remote video?
A: We provide live video FAT sessions including load-bank verification for overseas clients.
Q: What technical documentation is supplied with the dispatch?
A: Each unit includes electrical schematics, factory test reports, maintenance manuals, and engine certification papers.
Q: Can the unit operate continuously at 4000 meters altitude?
A: High-altitude operation is supported, with output derating according to ISO ambient guidelines.
Q: Does the factory supply original spare parts for scheduled maintenance?
A: We provide complete 250-hour and 1000-hour consumables kits directly from our production inventory.
Q: Are the lifting lugs rated for crane installation?
A: The heavy-duty skid chassis incorporates dedicated lifting lugs rated for the maximum wet weight.
Q: Can you accommodate third-party inspections like SGS or BV?
A: We regularly host international inspection agencies for pre-shipment verification and quality audits at our facility.
Q: What type of paint finish is applied to the enclosure?
A: The exterior canopy utilizes electrostatically applied thermosetting powder coating for enhanced UV resistance.
