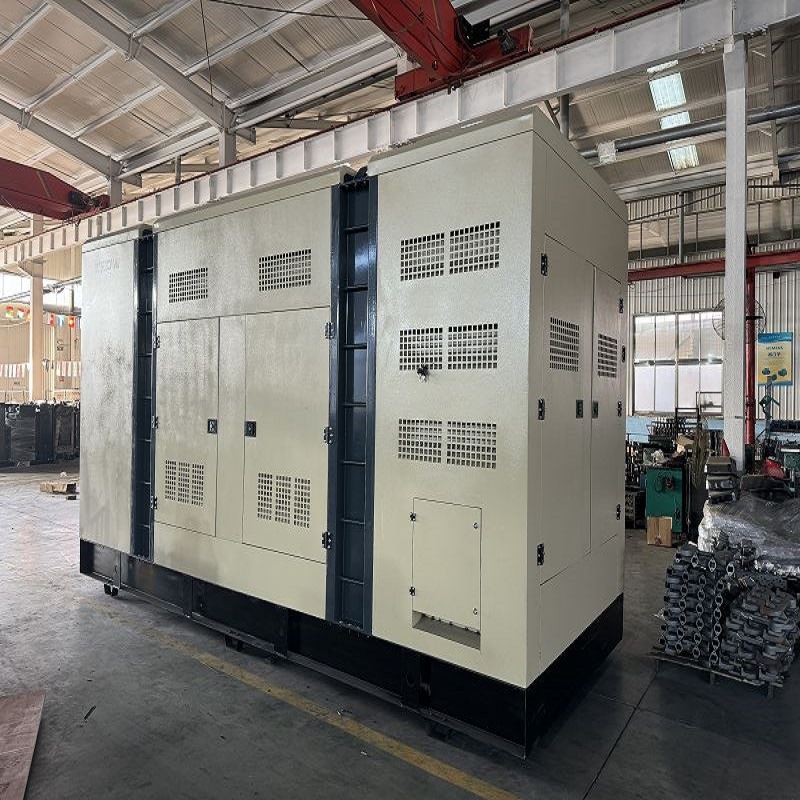

This 100 kVA silent diesel generator delivers reliable primary or emergency power. It features a water-cooled diesel engine, a brushless alternator, a digital controller, an integrated fuel tank, and a weather-resistant acoustic enclosure.
Technical Specifications
|
Item |
Specification |
|
Rated Power |
100 kVA / 80 kW Prime; 110 kVA Standby @ 50Hz |
|
60Hz Output |
115 kVA / 92 kW |
|
Engine |
4-Cylinder, Water-Cooled, Turbocharged |
|
Engine Speed |
1500 RPM @ 50Hz / 1800 RPM @ 60Hz |
|
Alternator |
4-Pole, Brushless, Self-Excited; IP23, Class H |
|
Voltage Regulation |
±1.0% |
|
Frequency Stability |
≤0.5% Speed Droop |
|
Noise Level |
68–72 dBA @ 7 m, Full Load |
|
Fuel Tank |
200 L Double-Wall Tank; ≥8 h @ 100% Prime Load |
|
Control System |
Digital AMF Controller; RS485 / CANbus |
|
Ambient Temperature |
Up to 50°C (122°F) Without Derating |
|
Dimensions / Weight |
2800 × 1100 × 1650 mm; Approx. 1,650 kg |
Fuel Efficiency
|
Parameter |
Specification |
|
Fuel Consumption @ 25% Load |
~6.2 L/h (1.64 US gal/h) |
|
Fuel Consumption @ 50% Load |
~11.5 L/h (3.03 US gal/h) |
|
Fuel Consumption @ 75% Load |
~16.8 L/h (4.43 US gal/h) |
|
Fuel Consumption @ 100% Load |
~22.4 L/h (5.91 US gal/h) |
|
Fuel Tank |
200 L Integrated Double-Wall Tank |
|
Continuous Runtime |
≥8 h @ 100% Prime Load |
|
Auxiliary Fuel Options |
500 L / 1000 L External Tank with Automatic Fuel Transfer Pump |
Application Scenarios
Construction & Mining Sites: Heavy-dust, continuous high-vibration outdoor environments, and temporary site power grids.
Commercial Facilities: Rooftop or basement backup installations for supermarkets, mid-sized hotels, and commercial buildings.
Industrial Manufacturing: Dedicated standby power supply for automated assembly lines, CNC machining centers, and continuous processing plants.
Remote Telecom Infrastructure: Off-grid cellular base stations, remote communication repeaters, and isolated research outposts.
Power Output & Electrical Performance
Block Load Capacity:
Accepts 100% single-step load impact with a dynamic frequency drop to support direct-on-line heavy motor starts.
Total Harmonic Distortion:
THD under 3% at no-load and under 5% under full non-linear load, protecting connected PLCs and sensitive microelectronics from voltage noise.
Winding Insulation:
Class H alternator insulation, processed via vacuum-pressure impregnation (VPI), is epoxy-coated and prevents moisture breakdown.
Unbalanced Phase Handling:
Sustains phase current imbalance while preserving three-phase output voltage stability within +/- 1%.
Custom Configuration Options
Engine & Alternator Pairing: Factory integration options for Cummins, Perkins, Deutz, or domestic engines matched with Stamford or Leroy-Somer alternators.
Voltage & Frequency: Customizable windings for 220V–480V, 50Hz (1500 RPM) or 60Hz (1800 RPM) in single-phase or three-phase setups.
Control Systems: Deepsea or ComAp digital control platforms supporting ATS integration, multi-genset synchronization, and remote telemetry modules.
Enclosure Engineering: Weatherproof silent canopies configured for standard industrial sites or ultra-silent variants for noise-restricted zones.
Manufacturing Process
Laser Cutting & Bending: CNC fiber lasers precisely cut and form cold-rolled steel sheets before they are assembled into enclosures.
Surface Treatment: Enclosure panels complete a 9-stage chemical wash, zinc-rich powder coating, and 200°C oven curing for 1000-hour salt spray corrosion endurance.
Engine Alignment & Mounting: Dial indicators verify crankshaft-to-alternator concentricity before securing the drivetrain onto heavy-duty rubber anti-vibration dampers.
Load Bank Testing: Assembled units undergo a mandatory 4-hour factory testing regimen at 25%, 50%, 75%, 100%, and 110% overload conditions.
Compliance & Certifications
Quality Management: ISO 9001, ISO 14001, and ISO 45001 manufacturing site accreditations.
Safety & Electrical Directives: Compliance with CE Machinery Directive 2006/42/EC, Low Voltage Directive 2014/35/EU, and IEC 60034-1 rating standards.
Emissions Standards: US EPA Tier 3/Tier 4i and EU Stage III/Stage V engine emission test documentation provided.
FAQ
Q: What engine brand comes as standard, and which are optional upgrades?
A: The standard configuration ships with a proven 4-cylinder turbocharged engine matched to the rated 100 kVA output; Cummins, Perkins, or Deutz engines are available as factory-fit upgrades for customers with specific brand or parts-network requirements.
Q: Can certification documents be verified before shipment?
A: Yes, copies of the ISO 9001/14001/45001 certificates and CE Declaration of Conformity are provided before shipment, alongside the unit-specific EPA/EU emissions test report.
Q: What is the minimum order quantity and typical lead time for this model?
A: Standard 100 kVA units are available for individual purchase, with production lead times determined by the selected engine–alternator combination and confirmed factory scheduling at the time of order.
Q: Can the generator be customized for project tender specifications?
A: Yes, engine/alternator pairing, control system platform, enclosure type, and voltage/frequency windings can all be adjusted.
Q: What happens if a critical spare part is needed after installation?
A: Spare parts can be ordered through the same channel as the original purchase. Maintenance guidance and electrical drawings are provided to help local technicians identify the correct parts before shipment.
